| Mode No: | 6038 | |||||
| Dimension: | 60x60x38mm | |||||
| Bearing Type: | Two Ball Bearing | |||||
| Sleeve Bearing | ||||||
| Hydraulic Bearing | ||||||
| FDB Bearing | ||||||
| Material： | Frame Plastic (UL：94V-0) | |||||
| Impeller Plastic (UL：94V-0) | ||||||
| Housing Plastic (UL：94V-0) | ||||||
| Weight： | 97g | |||||
| Safety: | UL, TUV, CE | |||||
| Srorage Temperature: | -40℃ to +70℃ | |||||
| Operating Temperature: | -40℃ to +70℃ | |||||
| Model | Bearing △AHydraulic bearing ●Ball |
Rating Voltage (VDC) |
Speed (RPM) |
Air Flow (CFM) |
Static Pressure (mmH20) |
power Current (AMP) |
power Consumpt ion (WATTS) |
Noise (dBA) |
|---|---|---|---|---|---|---|---|---|
| TD6038B12LA | ● | 12 | 5000 | 18.41 | 7.08 | 0.80 | 9.60 | 31.15 |
| TD6038B12MA | ● | 12 | 10000 | 36.32 | 28.34 | 1.50 | 18.00 | 46.20 |
| TD6038B12HA | ● | 12 | 15000 | 55.23 | 63.73 | 2.50 | 30.00 | 55.00 |

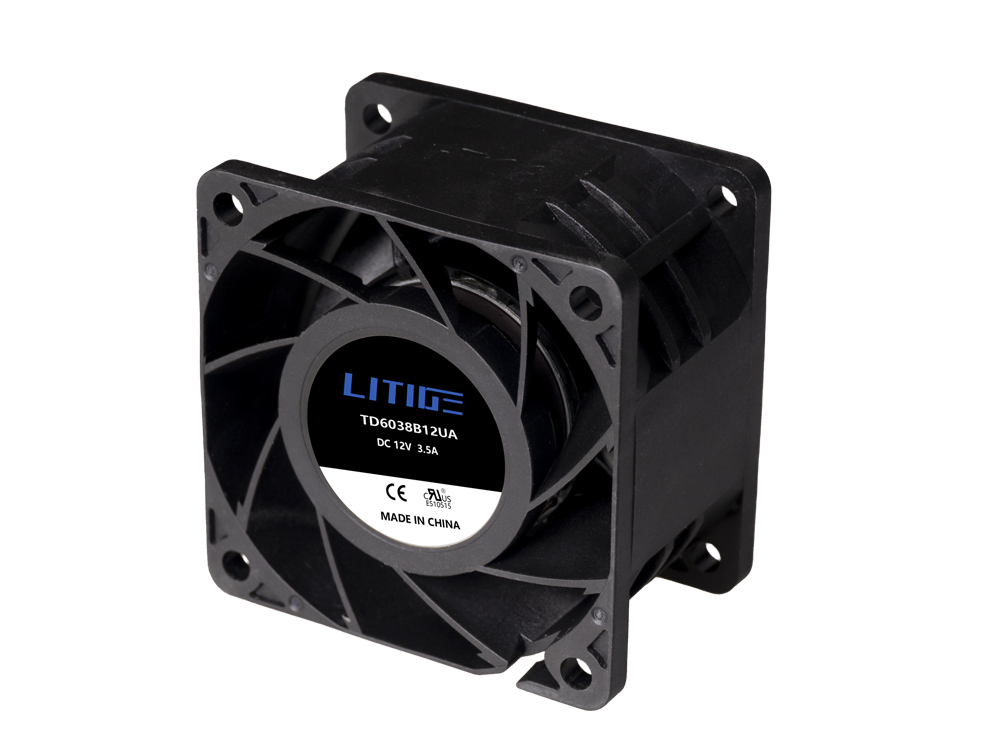

| TD6038B12UA | ● | 12 | 20000 | 73.64 | 113.30 | 3.50 | 42.00 | 61.26 |
| *Continuation: "B" may be "B" "H" "S" or "F" | ||||||||
| Bearing Type: "B":Two ball bearing "H": Hydraulic bearing "S":Sleeve bearing "F":FDB bearing | ||||||||
| *Continuation: "12" may be "12" "24" "36" or "48" | ||||||||
| Rated Voltage: "12": 12V "18": 18V "36":36V "48":48V | ||||||||
| *Sound level measured at the distance of one meter from the axis of intake. | ||||||||
| *Specifications are subject change without notice. | ||||||||
